Short Description

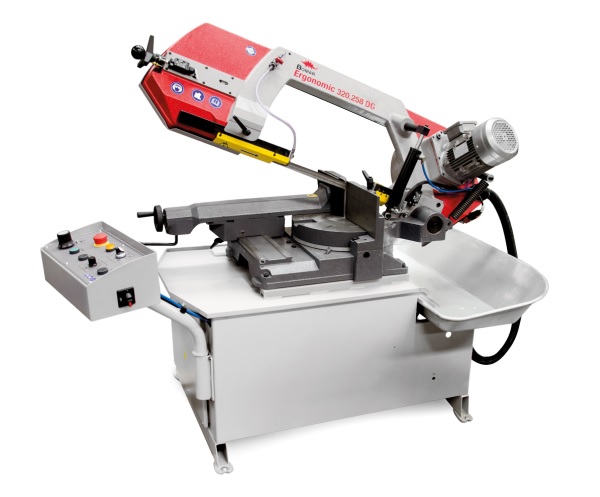

The machine ERGONOMIC 320.258 DGH is a hydraulic semi-automatic saw with cooling located in the base. Angle cuts can be performed by this machine on both sides is smooth within range -45° and 60°. Frame turning is manual. Adjustment of angle cuts is done very easily directly from the operator’s position. The machine is located on the turning console equipped with legible angle scale. The speed of the saw band is variable 20-120 m/min. Material feeding into the cut is manual. The saw can be easily controlled via controllers located directly on the control panel on the front side of the machine (see picture).

Note: Roller conveyor M 330 with carrying capacity 215 kg/m can be attached to the band saw ERGONOMIC 320.258 DGH from the left input side (material input) or from the right input side (material withdrawal). The requested conveyor length can be assembled from individual modules with the lengths of 2 or 3 m. The number of supporting feet depends on the overall conveyor length.

On your request, we will be glad to send you more detailed information on the material roller conveyor product range.
