Short description of saw and standard equipment

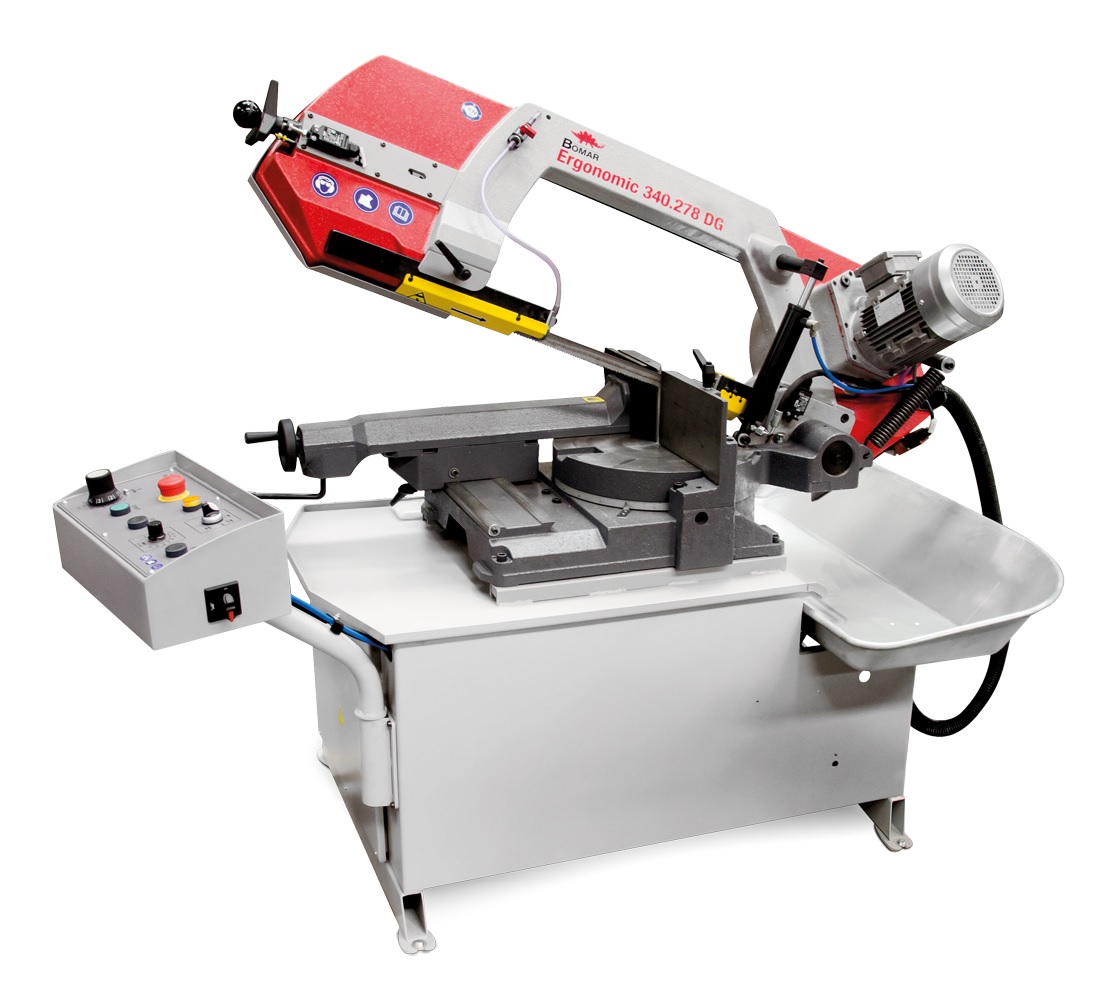

The machine ERGONOMIC 340.278 DG is a manual saw with cooling installed in the machine base. Angle cuts can be performed by this machine on both sides is smooth within range -45° and 60°. Frame turning has to be done manually. Adjustment of angle cuts can be done very easily directly from the operator’s position. The machine is located on a turning console equipped with a legible angle scale. The speed of the saw band is variable 20-120 m/min. Material feeding into the cut is manual. The machine control is easy due to controllers located directly on the machine engine.

Note :

Roller conveyor M 330 with a carrying capacity 215 kg/m can be attached to the band saw ERGONOMIC 340.278 DG from the left input side (material feeding) or from the right output side (material withdrawal). The requested conveyor length can be assembled from individual modules with the lengths of 2 or 3 m. The number of support feet depends on the overall conveyor length.
